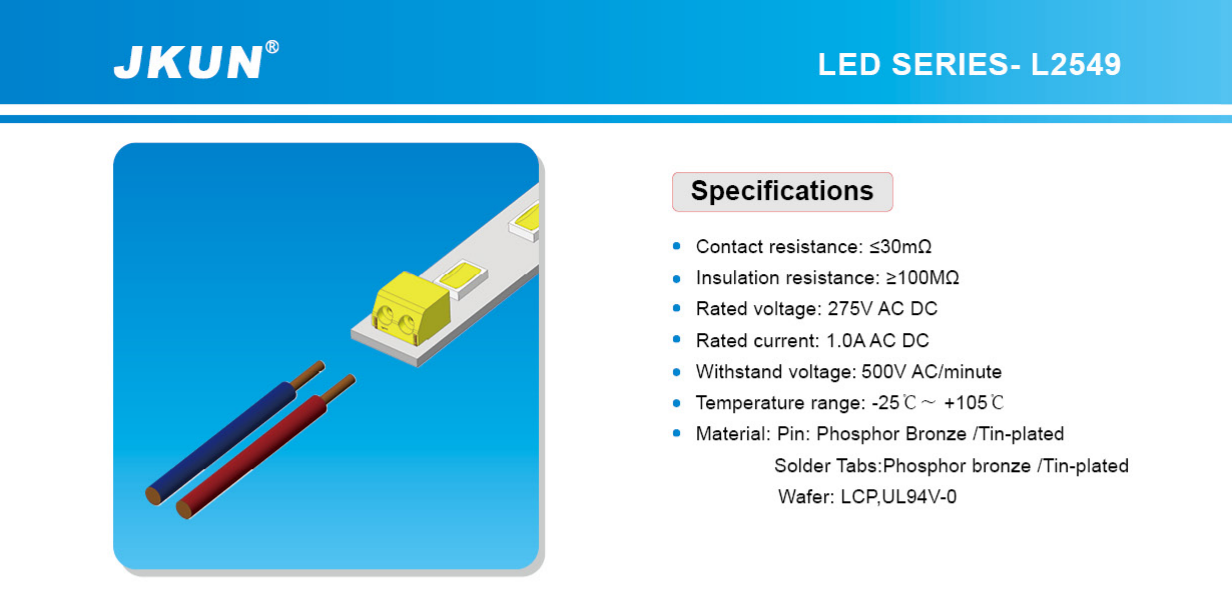

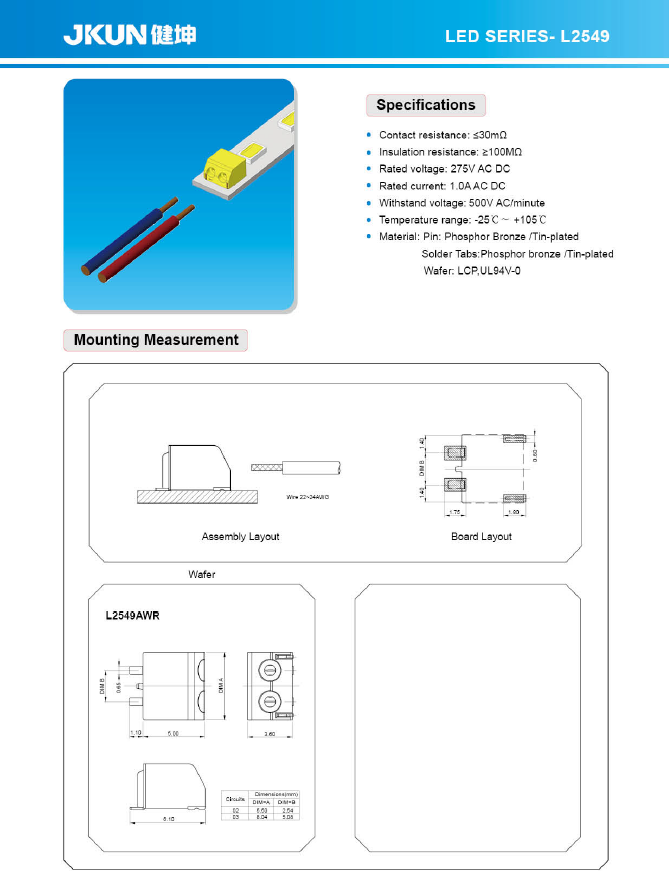

L2549快插式连接器led连接器

技术参数:

  • Contact resistance: ≤30mΩ

  • Insulation resistance: ≥100MΩ

  • Rated voltage: 275V AC DC

  • Rated current: 1.0AAC DC

  • Withstand voltage: 500V AC/minute

  • Temperature range: -25℃ ~ + 105℃

  • Material: Pin: Phosphor Bronze !Tin-plated

  • Solder Tabs:Phosphor bronze !Tin-plated

  • Wafer: LCP,UL94V-O


.
