L019L019B 2孔

技术参数:

  • Part Number:L019L019B

  • Poles:2P

  • Contact resistance:≤20mΩ

  • Insulation resistance:≥1000MΩ

  • Rated voltage:250V AC DC

  • Rated current:2.0A AC DC

  • Withstand Voltage:2000V AC/minute

  • Temperature Range:-40℃~ +105℃

  • Detailed Description: Pin:Brass/Sn-plated  Wafer:PA46,UL94V-0



产品详情

-

技术参数

Pitch:--

Rated voltage:250V AC DC

Poles:2P

Rated current:2.0A AC DC

Contact resistance:≤20mΩ

Withstand Voltage:2000V AC/minute

Insulation resistance:≥1000MΩ

Temperature Range:-40℃~ +105℃

配套产品

产品应用

资料下载

-

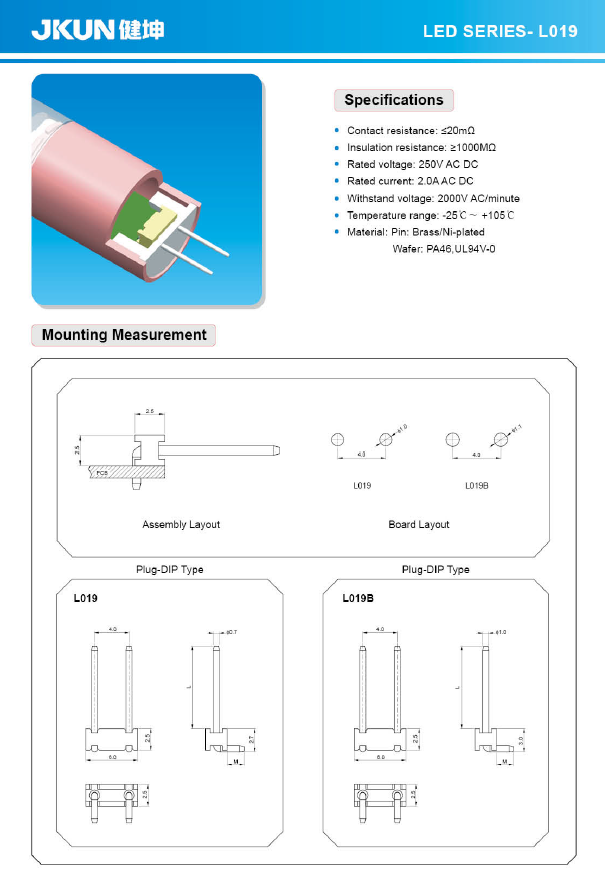

PDF文件

  • L019-02-B1MG-P
  • L019B-02-B1MG-P
.
