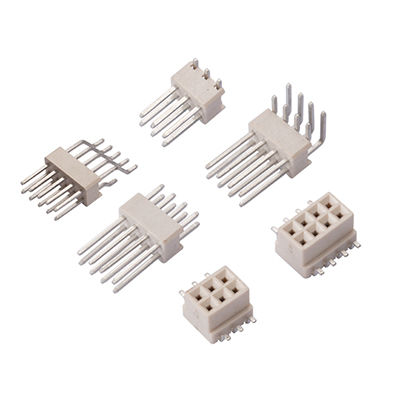

L1501AFV LED灯泡连接器 1.5mm 间距

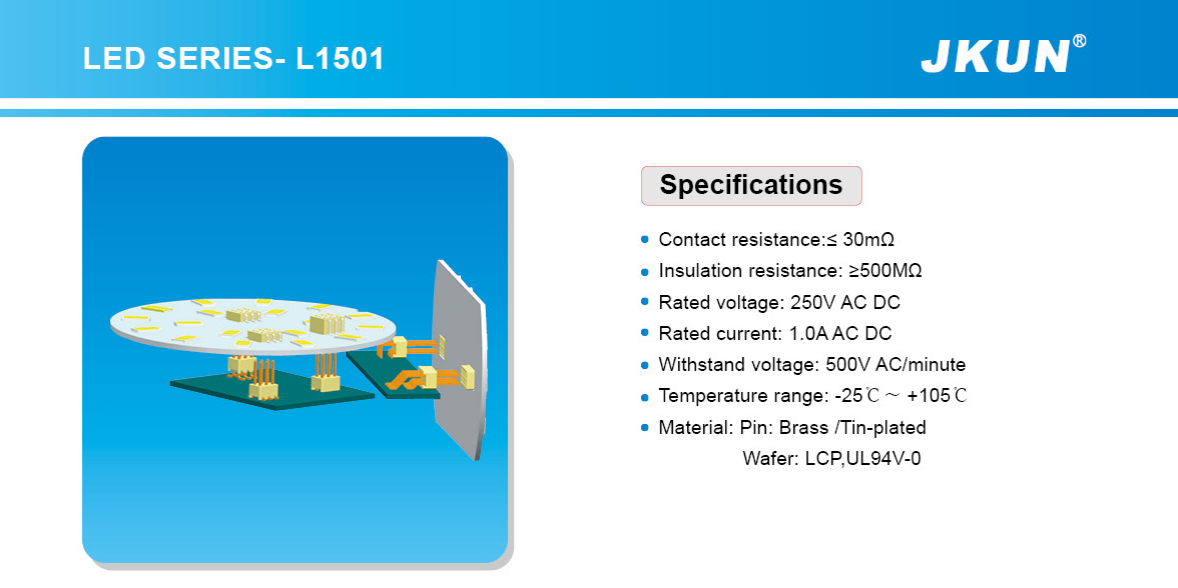

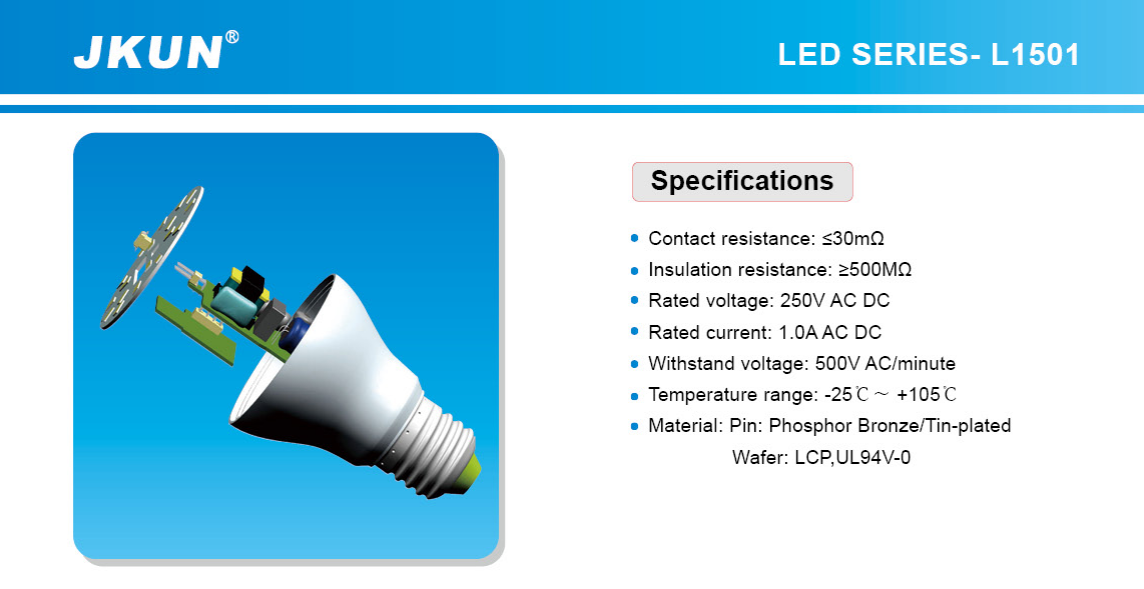

技术参数:

• Contact resistance:≤30mΩ

• Insulation resistance: ≥500MΩ

• Rated voltage: 250V AC DC

• Rated current: 1.0AAC DC

• Withstand voltage: 500V AC/minute

• Temperature range : -25℃~ +105℃

• Material: Pin: Brass !Tin-plated

Wafer: LCP,UL94V-O


产品详情

-

技术参数


产品详情请点击资料下载→下载图纸



配套产品

产品应用

资料下载

-

PDF文件

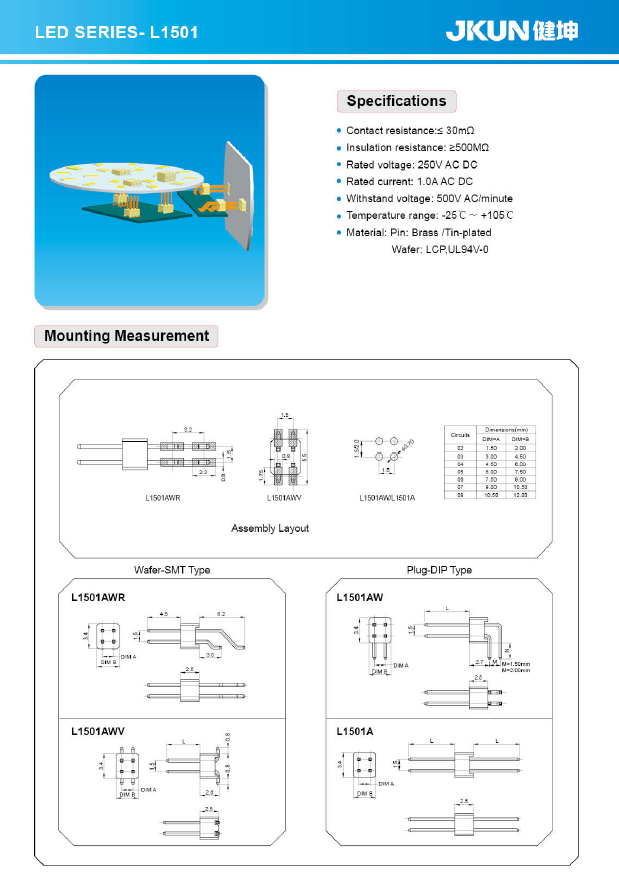

  • L1501A-2xx-F6MB2-P-8直针9.5x2.0

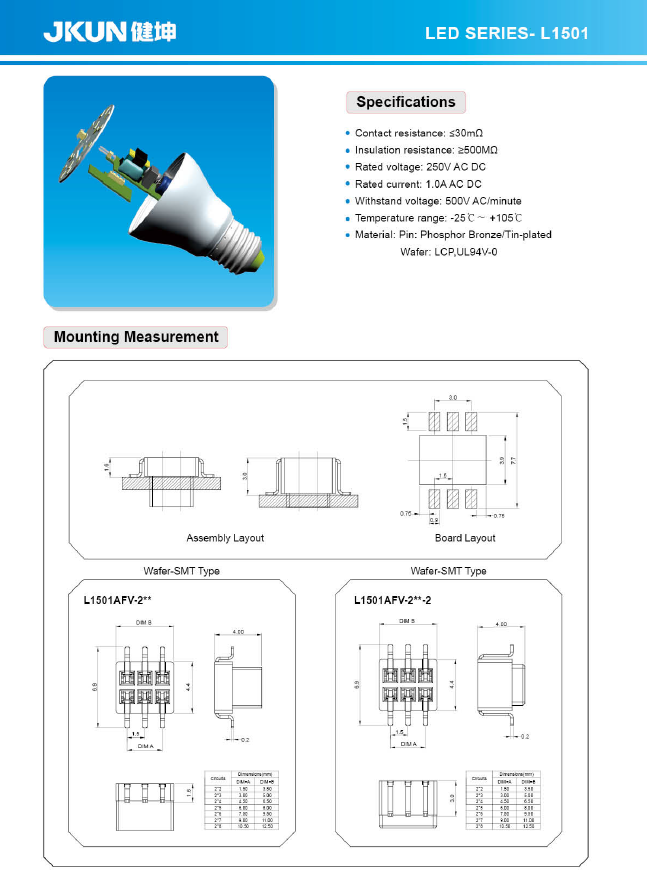

  • L1501AFV-2xx-F6MB1-R
  • L1501AFV-2xx-F6MB1-R-2
  • L1501AW-2xx-F6MB2-P
  • L1501AWR-2xx-F6MB2-R-1
  • L1501AWV-2xx-F6MB2-R-2
.
