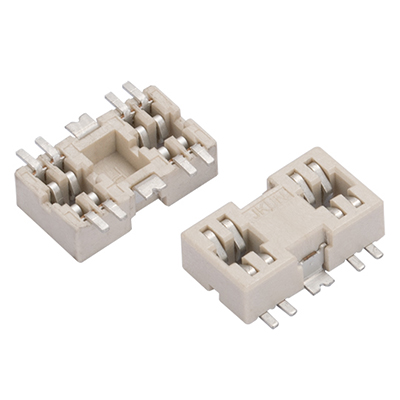

L1251AWV LED灯泡连接器1.25mm间距

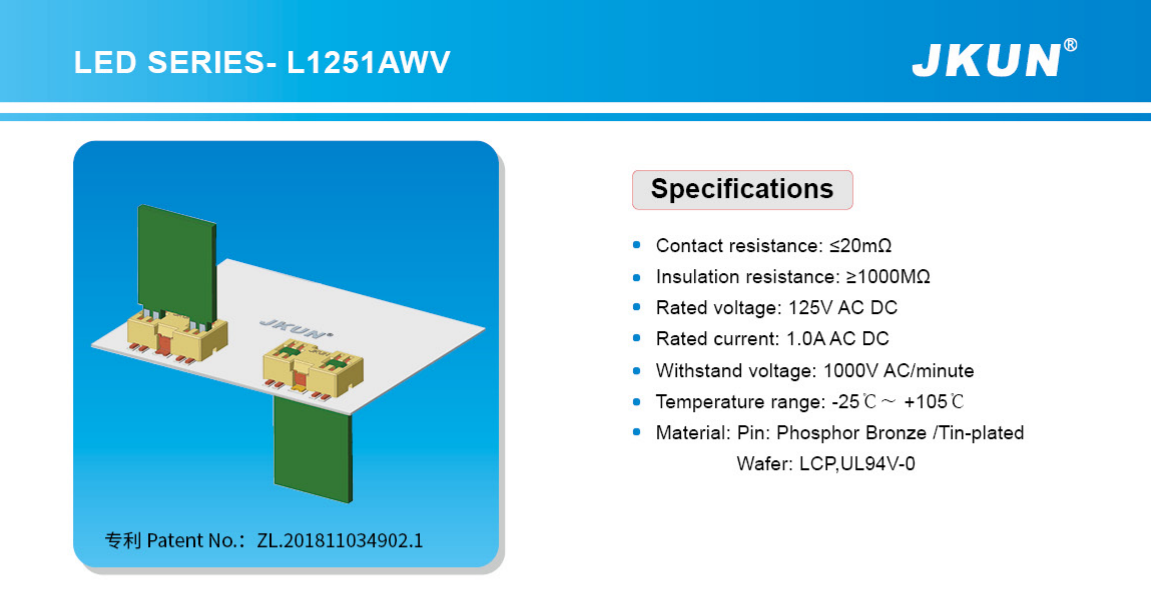

技术参数:

  • Contact resistance: ≤520mΩ

  • Insulation resistance:≥1000MΩ

  • Rated voltage: 125V AC DC

  • Rated current: 1.0AAC DC

  • Withstand voltage: 1 OOOV AC/minute

  • Temperature range: -25℃ ~ + 105℃

  • Material: Pin: Phosphor Bronze /Tin-plated

  • Wafer: LCP,UL94V-O


产品详情

-

技术参数

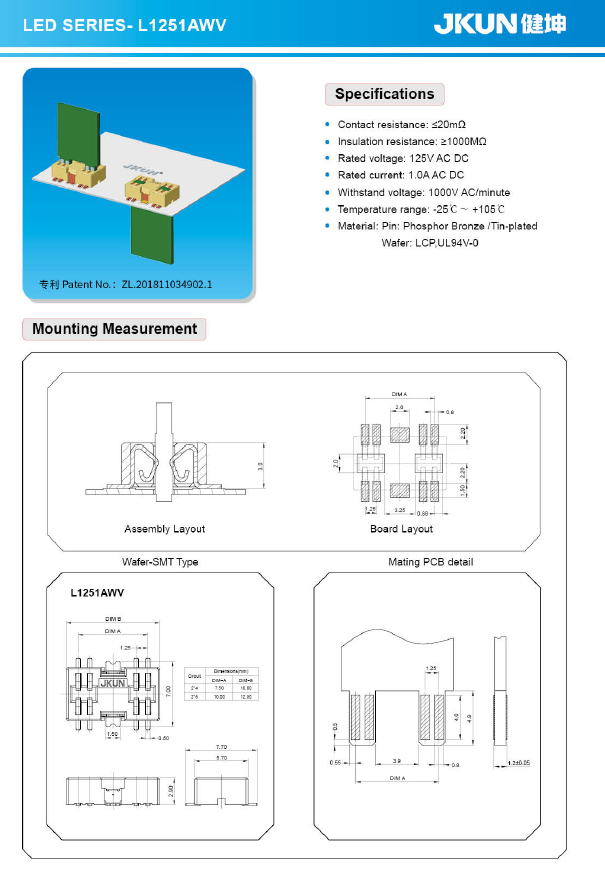

产品详情请点击资料下载→下载图纸



配套产品

产品应用

资料下载

-

PDF文件

  • L1251AWV-2XX-F8MB1-R
.
