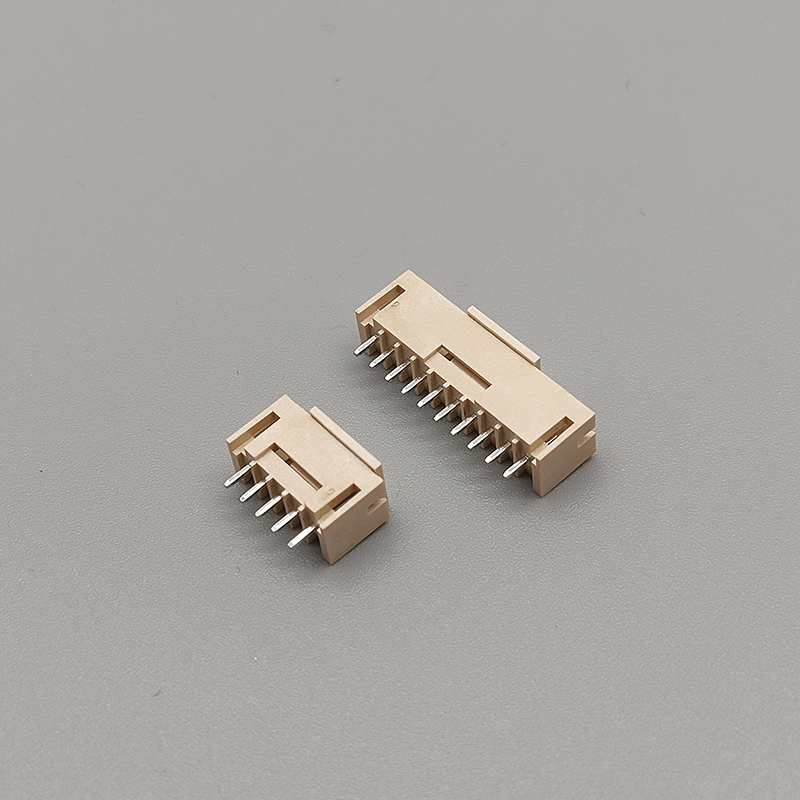

T2001通孔回流系列 2mm间距

∧ ∨

技术参数：

Part Number: T2001

Pitch: 2mm

Contact resistance: ≤20MΩ

Insulation resistance(MΩ): ≥1000MΩ

Rated voltage: 250V AC DC

Rated current: 2A AC DC

Withstand Voltage: 1000V AC/minute

Temperature Range: -25℃～ +105℃



发送信息 在线留言

产品详情

-

技术参数


                                                          Product Video



                                                    Product Parameter

Circuits (maximum)2Color - ResinBlack
Flammability 94V-0GenderReceptacle
Glow-Wire CapableGlow-Wire CapableKeying to Mating PartNone
Lock to Mating PartYesMaterial - ResinNylon
Packaging TypeBagPitch - Mating Interface3.00mm
Temperature Range - Operating-40° to +105°CContact resistance≥1000MΩ
Rated voltage250V AC DCRated current2A AC DC
Withstand Voltage1000V AC/minutePlatingTin


                                                       Product Compliance



EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Does not contain REACH SVHC
Disclaimer

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that CJT has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that CJT has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information CJT provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-reach



                                                        Product Application


一般使用在混合型电子组装类型的PCB板上，主要由于元件位置比较紧凑，

考虑到元件尺寸大小，数量等影响比较大的PCB板，双面焊接的PCB板，

这些使用通孔回流焊接，可解决焊接需求。

 运用在例如：遥控器、录音机、鼠标、键盘、电视机、电风扇、电源类等产品PCB上
